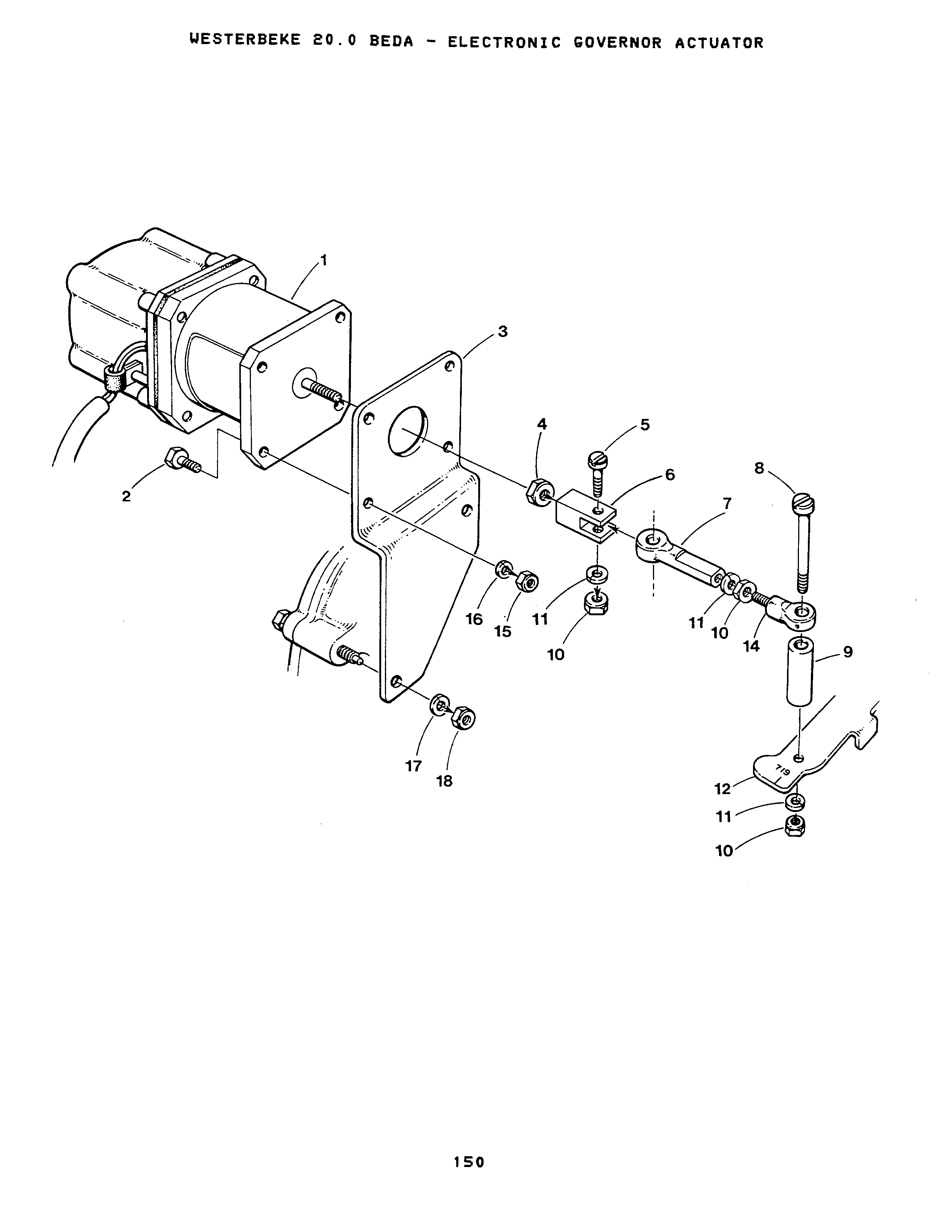

20.0 BEDA - ELECTRONIC GOVERNOR ACTUATOR

Click the (+) and (-) buttons to zoom in and zoom out

Click on the name of any part to see details and important notes

Parts

1-1

On Diagram

ACTUATOR

Part #: 303007

$2,659.10

QTY:

Sold By: EA

1-2

On Diagram

ACTUATOR

Part #: 039746

$1,270.50

QTY:

Sold By: EA

2

On Diagram

CAPSCREW M 6x20 DIN 933

Part #: 018804

$0.70

QTY:

Sold By: EA

3

On Diagram

BRACKET

Part #: 039161

$39.70

QTY:

Sold By: EA

4

On Diagram

NUT M 6 DIN 439 JAM

Part #: 031801

$0.40

QTY:

Sold By: EA

5

On Diagram

SCREW 10-32 X 7/8 SS

Part #: 031875

$0.50

QTY:

Sold By: EA

6

On Diagram

CLEVIS

Part #: 303009

$233.80

QTY:

Sold By: EA

7

On Diagram

BALLJOINT

Part #: 303012

This part is replaced with part number 048517

Price not found

QTY:

Sold By: EA

8

On Diagram

SCREW 10-32x1-3/4 SS BINDING

Part #: 039470

$1.20

QTY:

Sold By: EA

9

On Diagram

SPACER

Part #: 040955

$37.50

QTY:

Sold By: EA

10

On Diagram

NUT 10-32 SS

Part #: 031847

$0.20

QTY:

Sold By: EA

11

On Diagram

LOCKWASHER 10 MED SS

Part #: 031849

$0.20

QTY:

Sold By: EA

12

On Diagram

LEVER

Part #: 040514

This part is no longer available.

$59.90

QTY:

Sold By: EA

13

On Diagram

SCREW 10-32 X 3/8 SS

Part #: 031871

$0.30

QTY:

Sold By: EA

14

On Diagram

BALLJOINT

Part #: 039390

This part is replaced with part number 048516

Price not found

QTY:

Sold By: EA

15

On Diagram

NUT M 6 DIN 934

Part #: 015812

$1.10

QTY:

Sold By: EA

16

On Diagram

LOCKWASHER M 6 DIN 127

Part #: 031783

$0.20

QTY:

Sold By: EA

17

On Diagram

LOCKWASHER M 8 DIN 127

Part #: 031786

$0.20

QTY:

Sold By: EA

18

On Diagram

NUT M 8 DIN 934

Part #: 018242

$0.30

QTY:

Sold By: EA
