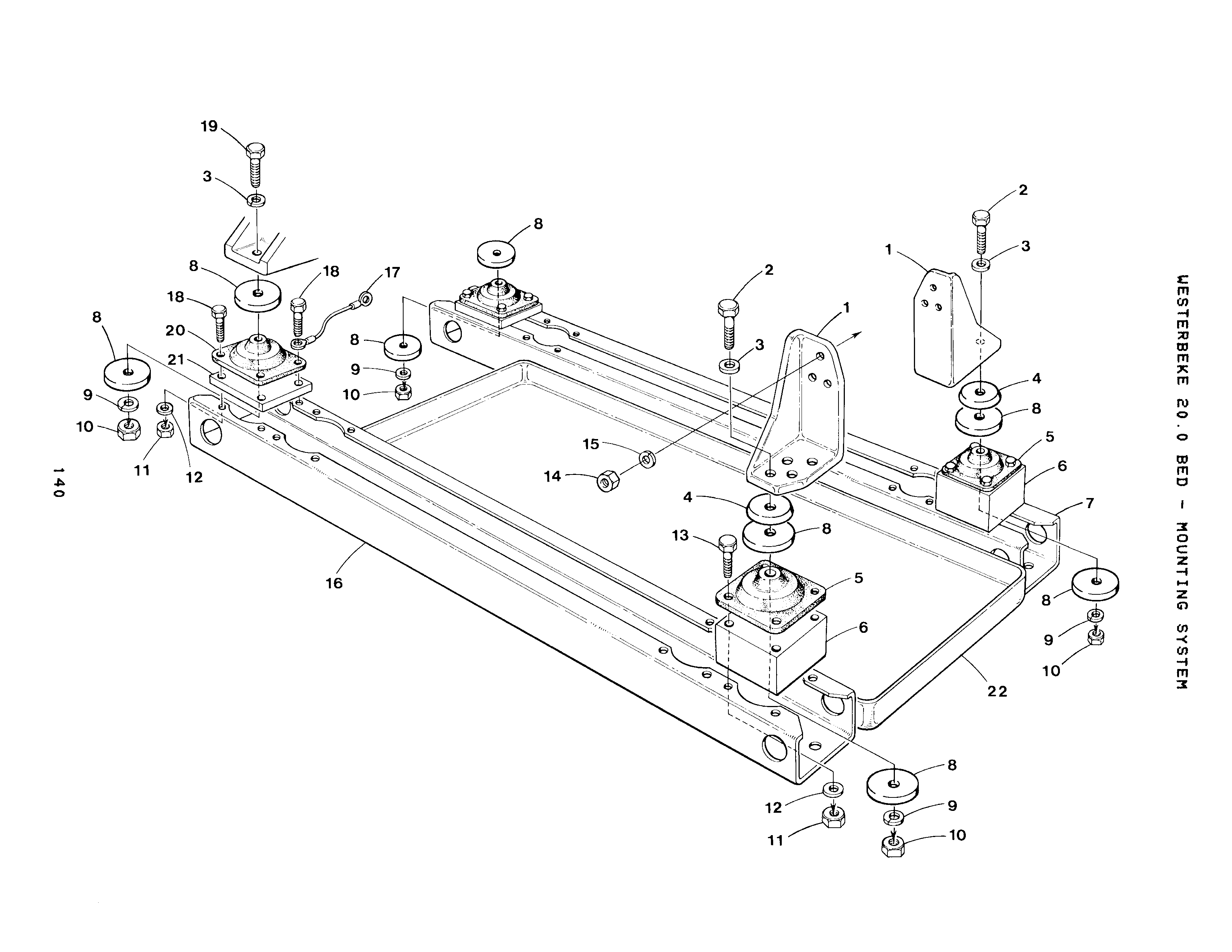

20.0 BED - MOUNTING SYSTEM

Click the (+) and (-) buttons to zoom in and zoom out

Click on the name of any part to see details and important notes

Parts

1

On Diagram

MOUNT

Part #: 037788

This part is no longer available.

$57.60
QTY:

Sold By: EA

2

On Diagram

CAPSCREW 1/2NCx3-1/4

Part #: 031714
$1.40
QTY:

Sold By: EA

3

On Diagram

WASHER

Part #: 031777
$0.80
QTY:

Sold By: EA

4

On Diagram

SHIELD

Part #: 033530
$6.30
QTY:

Sold By: EA

5

On Diagram

ISOLATOR

Part #: 015238
$62.50
QTY:

Sold By: EA

6

On Diagram

SPACER

Part #: 039367
$84.80
QTY:

Sold By: EA

7

On Diagram

RAIL ASSEMBLY

Part #: 039226
$533.10
QTY:

Sold By: EA

8

On Diagram

WASHER

Part #: 024674
$2.20
QTY:

Sold By: EA

9

On Diagram

LOCKWASHER 1/2 MED

Part #: 031776
$0.20
QTY:

Sold By: EA

10

On Diagram

NUT 1/2-13 NC

Part #: 031774
$0.40
QTY:

Sold By: EA

11

On Diagram

NUT 5/16-18 NC

Part #: 031756
$0.20
QTY:

Sold By: EA

12

On Diagram

LOCKWASHER 5/16 MED

Part #: 031758
$0.20
QTY:

Sold By: EA

13

On Diagram

CAPSCREW 5/16NCx3-1/4

Part #: 031564
$1.80
QTY:

Sold By: EA

14

On Diagram

NUT 7/16-20 NF

Part #: 031772

This part is no longer available.

$0.60
QTY:

Sold By: EA

15

On Diagram

LOCKWASHER 7/16 MED

Part #: 031770
$0.20
QTY:

Sold By: EA

16

On Diagram

RAIL ASSEMBLY

Part #: 039227
$544.30
QTY:

Sold By: EA

17

On Diagram

STRAP

Part #: 034713
$11.60
QTY:

Sold By: EA

18

On Diagram

CAPSCREW 5/16NCx1-1/2

Part #: 031557
$0.50
QTY:

Sold By: EA

19

On Diagram

CAPSCREW 1/2NCx4-1/4

Part #: 031718
$9.00
QTY:

Sold By: EA

20

On Diagram

ISOLATOR

Part #: 015239
$122.70
QTY:

Sold By: EA

21

On Diagram

SPACER

Part #: 035271
$18.70
QTY:

Sold By: EA

22

On Diagram

DRIPTRAY

Part #: 038698
$186.10
QTY:

Sold By: EA
