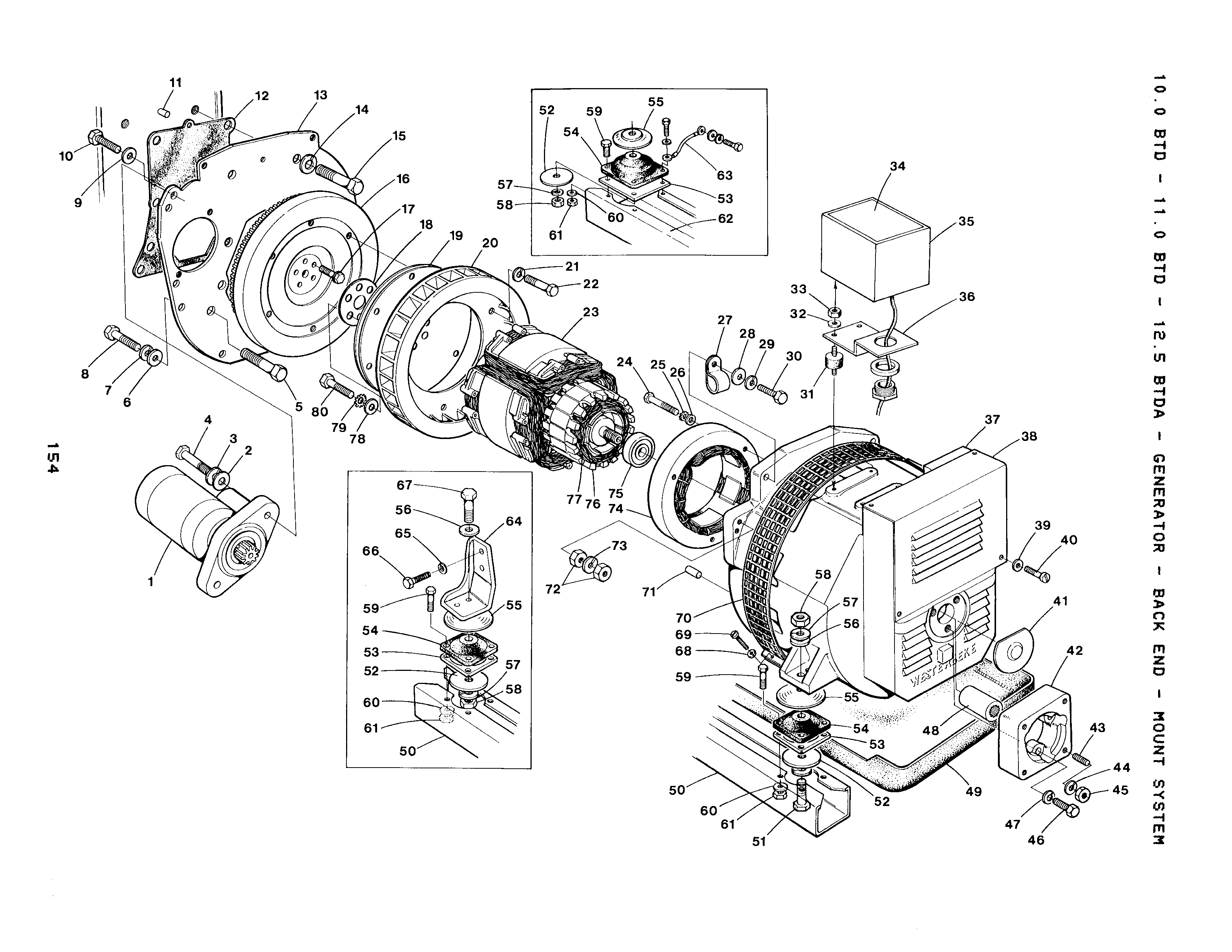

10-11 BTD-12.5 BTDA-GEN-BACK END-MOUNTS

Click the (+) and (-) buttons to zoom in and zoom out

Click on the name of any part to see details and important notes

Parts

1-1

On Diagram

MOTOR

Part #: 034552
$835.20
QTY:

Sold By: EA

1-2

On Diagram

MOTOR

Part #: 030593
$1,892.70
QTY:

Sold By: EA

2

On Diagram

WASHER M10 DIN 125

Part #: 031789
$1.30
QTY:

Sold By: EA

3

On Diagram

LOCKWASHER M10 DIN 127

Part #: 019262
$0.40
QTY:

Sold By: EA

4-1

On Diagram

CAPSCREW M10x30 DIN 933

Part #: 034589
$1.30
QTY:

Sold By: EA

4-2

On Diagram

CAPSCREW M10x35 DIN 933

Part #: 031926
$2.00
QTY:

Sold By: EA

4-3

On Diagram

CAPSCREW M10x30 DIN 933

Part #: 034589
$1.30
QTY:

Sold By: EA

5

On Diagram

CAPSCREW M12x1.25x25 DIN 961

Part #: 024959
$2.60
QTY:

Sold By: EA

6

On Diagram

WASHER M10 DIN 125

Part #: 031789
$1.30
QTY:

Sold By: EA

7

On Diagram

LOCKWASHER M10 DIN 127

Part #: 019262
$0.40
QTY:

Sold By: EA

8

On Diagram

CAPSCREW M10x25 DIN 933

Part #: 013629
$1.40
QTY:

Sold By: EA

9

On Diagram

LOCKWASHER M10 DIN 127

Part #: 019262
$0.40
QTY:

Sold By: EA

10

On Diagram

CAPSCREW M10x55 DIN 933

Part #: 013631
$2.30
QTY:

Sold By: EA

12

On Diagram

GASKET

Part #: 030491
$27.10
QTY:

Sold By: EA

13-1

On Diagram

PLATE

Part #: 034010
$402.90
QTY:

Sold By: EA

13-2

On Diagram

PLATE

Part #: 036040

This part is no longer available.

Price not found
QTY:

Sold By: EA

14-1

On Diagram

LOCKWASHER M12 DIN 127

Part #: 031792
$0.40
QTY:

Sold By: EA

14-2

On Diagram

LOCKWASHER M12 DIN 127

Part #: 031792
$0.40
QTY:

Sold By: EA

15-1

On Diagram

CAPSCREW M12x1.25x30 DIN 961

Part #: 031834
$3.00
QTY:

Sold By: EA

15-2

On Diagram

CAPSCREW M12x1.25x30 DIN 961

Part #: 031834
$3.00
QTY:

Sold By: EA

16-1

On Diagram

FLYWHEEL ASSEMBLY

Part #: 037207
$595.40
QTY:

Sold By: EA

16-2

On Diagram

FLYWHEEL ASSEMBLY

Part #: 036385
$454.10
QTY:

Sold By: EA

16-3

On Diagram

GEAR

Part #: 032996
$120.70
QTY:

Sold By: EA

16-4

On Diagram

GEAR

Part #: 030230
$172.60
QTY:

Sold By: EA

17

On Diagram

BOLT

Part #: 033279
$7.80
QTY:

Sold By: EA

18

On Diagram

PLATE

Part #: 035928
Price not found
QTY:

Sold By: EA

19

On Diagram

PLATE

Part #: 035927
$92.30
QTY:

Sold By: EA

20

On Diagram

FAN

Part #: 035929
$175.80
QTY:

Sold By: EA

21

On Diagram

LOCKWASHER M 8 DIN 127

Part #: 031786
$0.20
QTY:

Sold By: EA

22

On Diagram

CAPSCREW M 8x20 DIN 933

Part #: 017196
$0.60
QTY:

Sold By: EA

23

On Diagram

ARMATURE BT 12.5KW 1PH

Part #: 037464
$4,490.70
QTY:

Sold By: EA

24

On Diagram

CAPSCREW M 5x35 DIN 912

Part #: 031919
$0.90
QTY:

Sold By: EA

25

On Diagram

LOCKWASHER M 5 DIN 6797A

Part #: 031914
$0.20
QTY:

Sold By: EA

26

On Diagram

WASHER M 5 DIN 125

Part #: 031781
$0.30
QTY:

Sold By: EA

27

On Diagram

CLAMP

Part #: 013760
$7.20
QTY:

Sold By: EA

28

On Diagram

WASHER M10 DIN 125

Part #: 031789
$1.30
QTY:

Sold By: EA

29

On Diagram

LOCKWASHER M10 DIN 127

Part #: 019262
$0.40
QTY:

Sold By: EA

30-1

On Diagram

CAPSCREW M10x45 DIN 931

Part #: 034470
$1.40
QTY:

Sold By: EA

30-2

On Diagram

CAPSCREW M10x40 DIN 933

Part #: 034590
$1.70
QTY:

Sold By: EA

31

On Diagram

ISOLATOR

Part #: 036652
$13.70
QTY:

Sold By: EA

32

On Diagram

LOCKWASHER M 6 DIN 127

Part #: 031783
$0.20
QTY:

Sold By: EA

33

On Diagram

NUT M 6 DIN 934

Part #: 015812
$1.10
QTY:

Sold By: EA

34

On Diagram

DECAL

Part #: 024968
$3.30
QTY:

Sold By: EA

35

On Diagram

PANEL

Part #: 037612
$30.00
QTY:

Sold By: each

36

On Diagram

BRACKET

Part #: 036730
$56.30
QTY:

Sold By: EA

37-1

On Diagram

GENERATOR 12.5KW BT 1 Phase

Part #: 037437
$5,631.90
QTY:

Sold By: EA

37-2

On Diagram

STATOR ASSY INCL HOUSING BT12

Part #: 037465

This part includes the main stator housing and main stator winding only. The exciter winding, transformer, terminal block and wiring are not included.

$4,660.20
QTY:

Sold By: EA

37-3

On Diagram

STATOR BT-12.5

Part #: 037466

This part is no longer available.

$3,748.60
QTY:

Sold By: EA

38

On Diagram

COVER

Part #: 037851
$90.40
QTY:

Sold By: EA

39

On Diagram

LOCKWASHER M 5 DIN 6797A

Part #: 031914
$0.20
QTY:

Sold By: EA

40

On Diagram

SCREW M 5 X 10 DIN 84A

Part #: 031918
$1.70
QTY:

Sold By: EA

41

On Diagram

COVER

Part #: 036701
$60.50
QTY:

Sold By: EA

42-1

On Diagram

KIT

Part #: 037134
$1,709.00
QTY:

Sold By: KT

42-2

On Diagram

DRAWING

Part #: 037197
Price not found
QTY:

Sold By: EA

42-3

On Diagram

ADAPTER

Part #: 034738
$755.40
QTY:

Sold By: EA

43

On Diagram

STUD

Part #: 034867
$13.80
QTY:

Sold By: EA

44

On Diagram

LOCKWASHER 1/2 MED

Part #: 031776
$0.20
QTY:

Sold By: EA

45

On Diagram

NUT 1/2-13 NC

Part #: 031774
$0.40
QTY:

Sold By: EA

46

On Diagram

CAPSCREW M12x40 DIN 933

Part #: 013589
$1.80
QTY:

Sold By: EA

47

On Diagram

LOCKWASHER M12 DIN 127

Part #: 031792
$0.40
QTY:

Sold By: EA

48

On Diagram

DRIVE

Part #: 037188
$1,763.70
QTY:

Sold By: EA

49-1

On Diagram

DRIPTRAY

Part #: 036376
$83.70
QTY:

Sold By: EA

49-2

On Diagram

DRIPTRAY

Part #: 037378
$65.10
QTY:

Sold By: EA

50-1

On Diagram

RAIL ASSEMBLY-LEFT

Part #: 036521
$355.20
QTY:

Sold By: EA

50-2

On Diagram

RAIL ASSEMBLY

Part #: 036436
$371.50
QTY:

Sold By: EA

51-1

On Diagram

CAPSCREW 1/2NCx2-3/4

Part #: 031712
$1.70
QTY:

Sold By: EA

51-2

On Diagram

CAPSCREW 1/2NCx3

Part #: 031713
$1.50
QTY:

Sold By: EA

52

On Diagram

WASHER

Part #: 024674
$2.20
QTY:

Sold By: EA

53-1

On Diagram

PLATE

Part #: 033574
$11.60
QTY:

Sold By: EA

53-2

On Diagram

SPACER

Part #: 035271
$15.20
QTY:

Sold By: EA

54-1

On Diagram

ISOLATOR

Part #: 021529
$54.50
QTY:

Sold By: EA

54-2

On Diagram

ISOLATOR

Part #: 015238
$57.30
QTY:

Sold By: EA

55

On Diagram

SHIELD

Part #: 033530
$6.30
QTY:

Sold By: EA

56

On Diagram

WASHER

Part #: 031777
$0.80
QTY:

Sold By: EA

57

On Diagram

LOCKWASHER 1/2 MED

Part #: 031776
$0.20
QTY:

Sold By: EA

58

On Diagram

NUT 1/2-13 NC

Part #: 031774
$0.40
QTY:

Sold By: EA

59-1

On Diagram

CAPSCREW 5/16NCx1

Part #: 031555
$0.40
QTY:

Sold By: EA

59-2

On Diagram

CAPSCREW 5/16NFx5/8

Part #: 031577
$0.50
QTY:

Sold By: EA

60

On Diagram

LOCKWASHER 5/16 MED

Part #: 031758
$0.20
QTY:

Sold By: EA

61

On Diagram

NUT 5/16-18 NC

Part #: 031756
$0.20
QTY:

Sold By: EA

62-1

On Diagram

RAIL ASSEMBLY-RIGHT

Part #: 036522
$375.10
QTY:

Sold By: EA

62-2

On Diagram

RAIL ASSEMBLY

Part #: 036437
$391.20
QTY:

Sold By: EA

63

On Diagram

STRAP

Part #: 034593
$16.50
QTY:

Sold By: EA

64-1

On Diagram

MOUNT

Part #: 033918
$188.80
QTY:

Sold By: EA

64-2

On Diagram

MOUNT

Part #: 036388
$219.60
QTY:

Sold By: EA

64-3

On Diagram

MOUNT

Part #: 036390

This part is no longer available.

$191.90
QTY:

Sold By: EA

65

On Diagram

LOCKWASHER M12 DIN 127

Part #: 031792
$0.40
QTY:

Sold By: EA

66

On Diagram

CAPSCREW M12x1.25x30 JIS

Part #: 032014
$4.40
QTY:

Sold By: EA

67-1

On Diagram

CAPSCREW 1/2NCx2-1/2

Part #: 031711
$6.20
QTY:

Sold By: EA

67-2

On Diagram

CAPSCREW 1/2NCx3

Part #: 031713
$1.50
QTY:

Sold By: EA

68

On Diagram

LOCKWASHER M 5 DIN 6797A

Part #: 031914
$0.20
QTY:

Sold By: EA

69

On Diagram

SCREW M 5 X 20 DIN 84A

Part #: 031920
$1.70
QTY:

Sold By: EA

70

On Diagram

GUARD

Part #: 035935
$105.50
QTY:

Sold By: EA

71

On Diagram

DOWEL

Part #: 019039
$1.20
QTY:

Sold By: EA

72-1

On Diagram

NUT M10 DIN 934

Part #: 015887
$0.60
QTY:

Sold By: EA

72-2

On Diagram

CAPSCREW M10x20 DIN 933

Part #: 018813
$1.10
QTY:

Sold By: EA

73

On Diagram

LOCKWASHER M10 DIN 127

Part #: 019262
$0.40
QTY:

Sold By: EA

74

On Diagram

STATOR

Part #: 037467
$703.10
QTY:

Sold By: EA

75

On Diagram

BEARING

Part #: 037460
$115.10
QTY:

Sold By: EA

76

On Diagram

VARISTOR

Part #: 035943
$52.80
QTY:

Sold By: EA

77

On Diagram

DIODE

Part #: 035931
$52.80
QTY:

Sold By: EA

78

On Diagram

WASHER M10 DIN 125

Part #: 031789
$1.30
QTY:

Sold By: EA

79

On Diagram

LOCKWASHER M10 DIN 6797A

Part #: 031915
$0.50
QTY:

Sold By: EA

80

On Diagram

CAPSCREW M10x25 DIN 933

Part #: 013629
$1.40
QTY:

Sold By: EA
